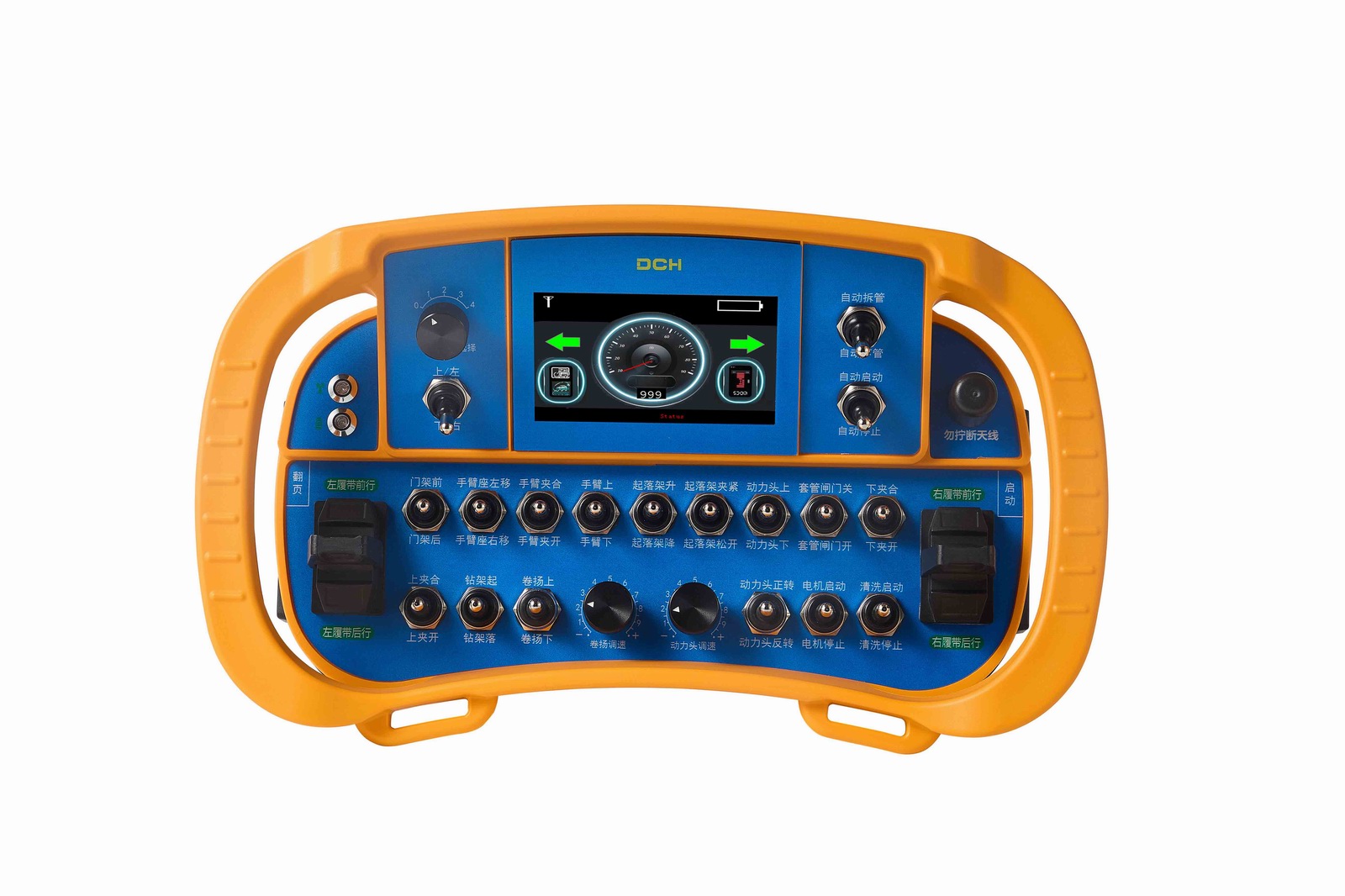

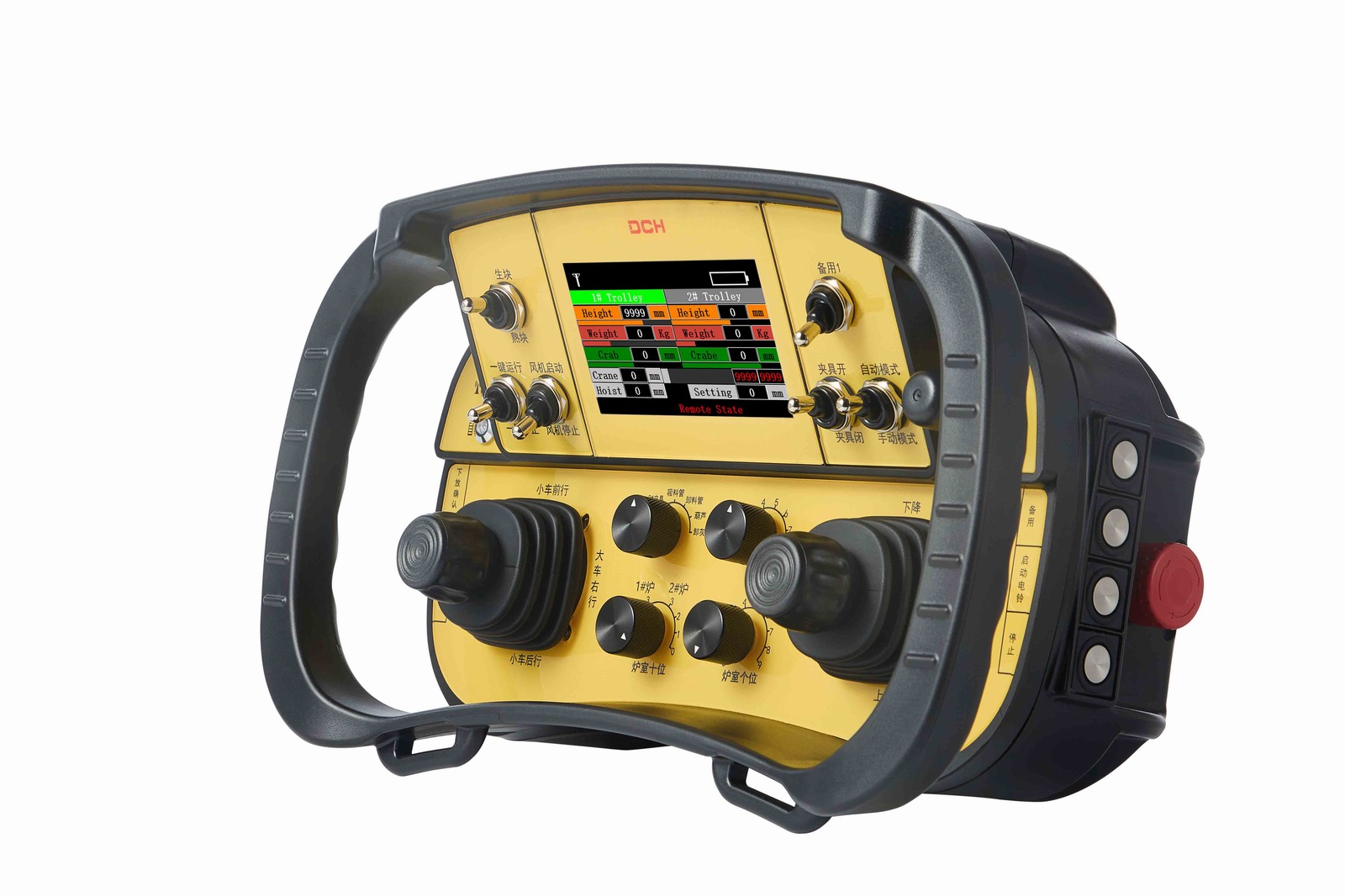

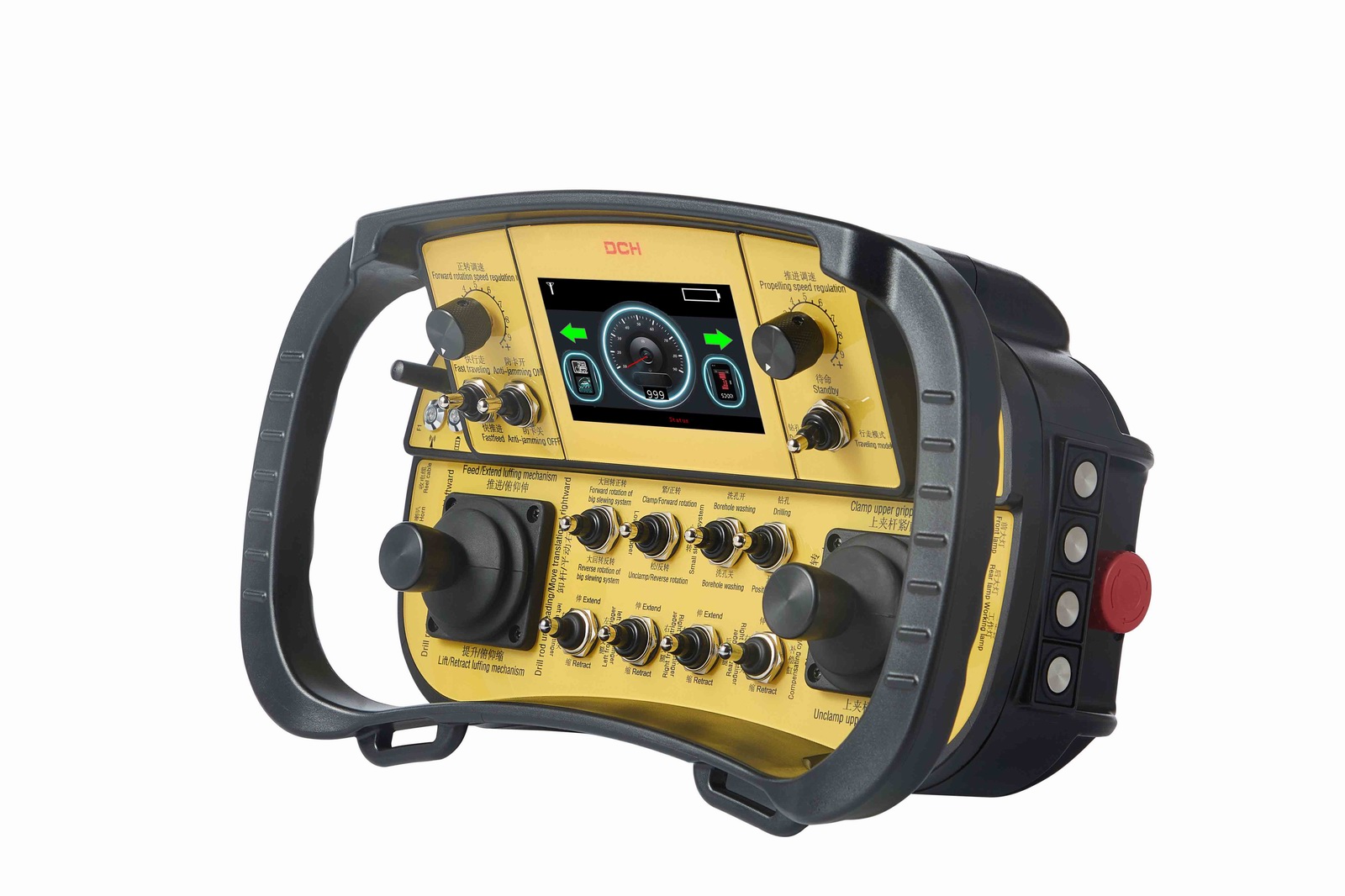

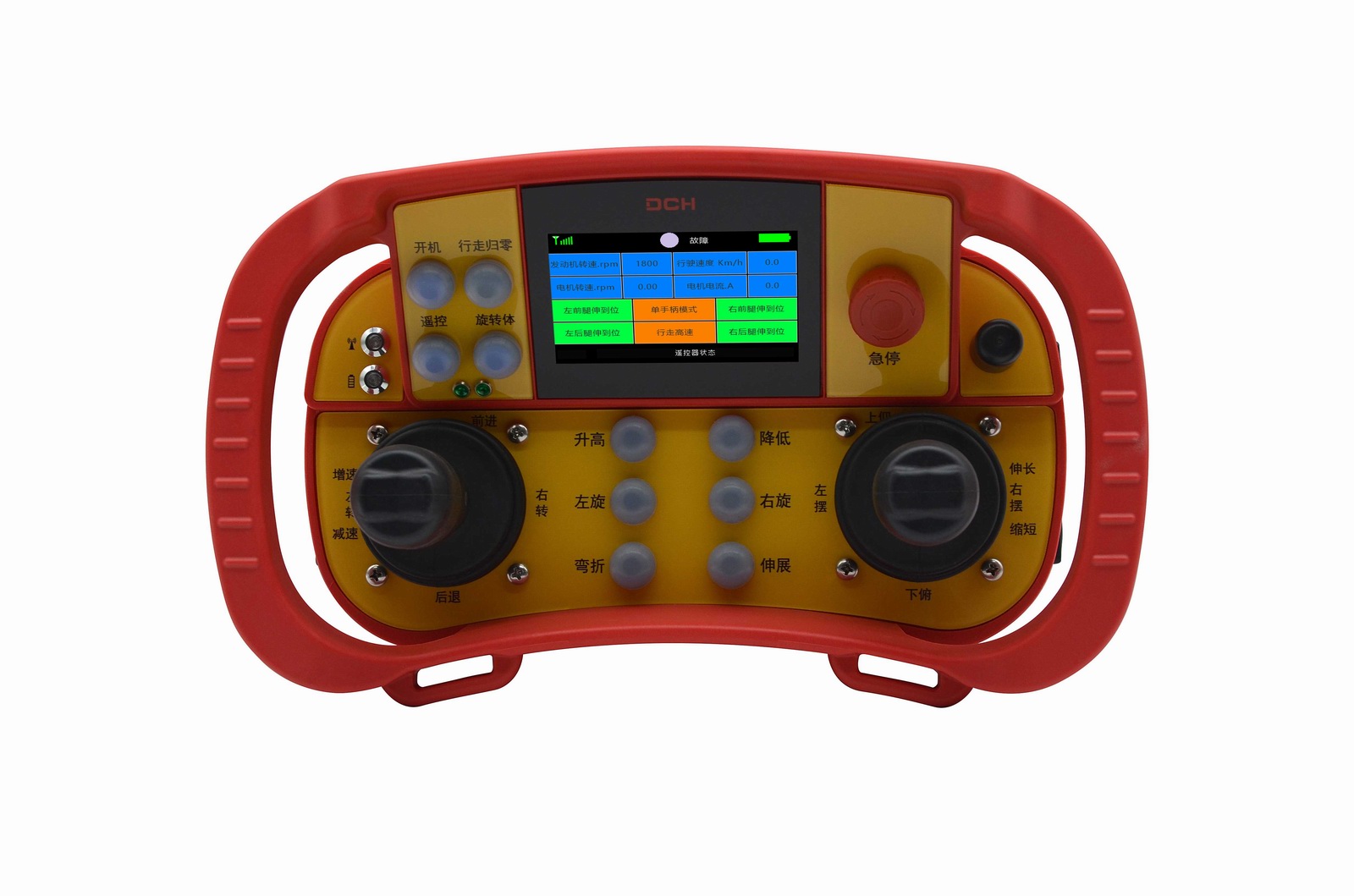

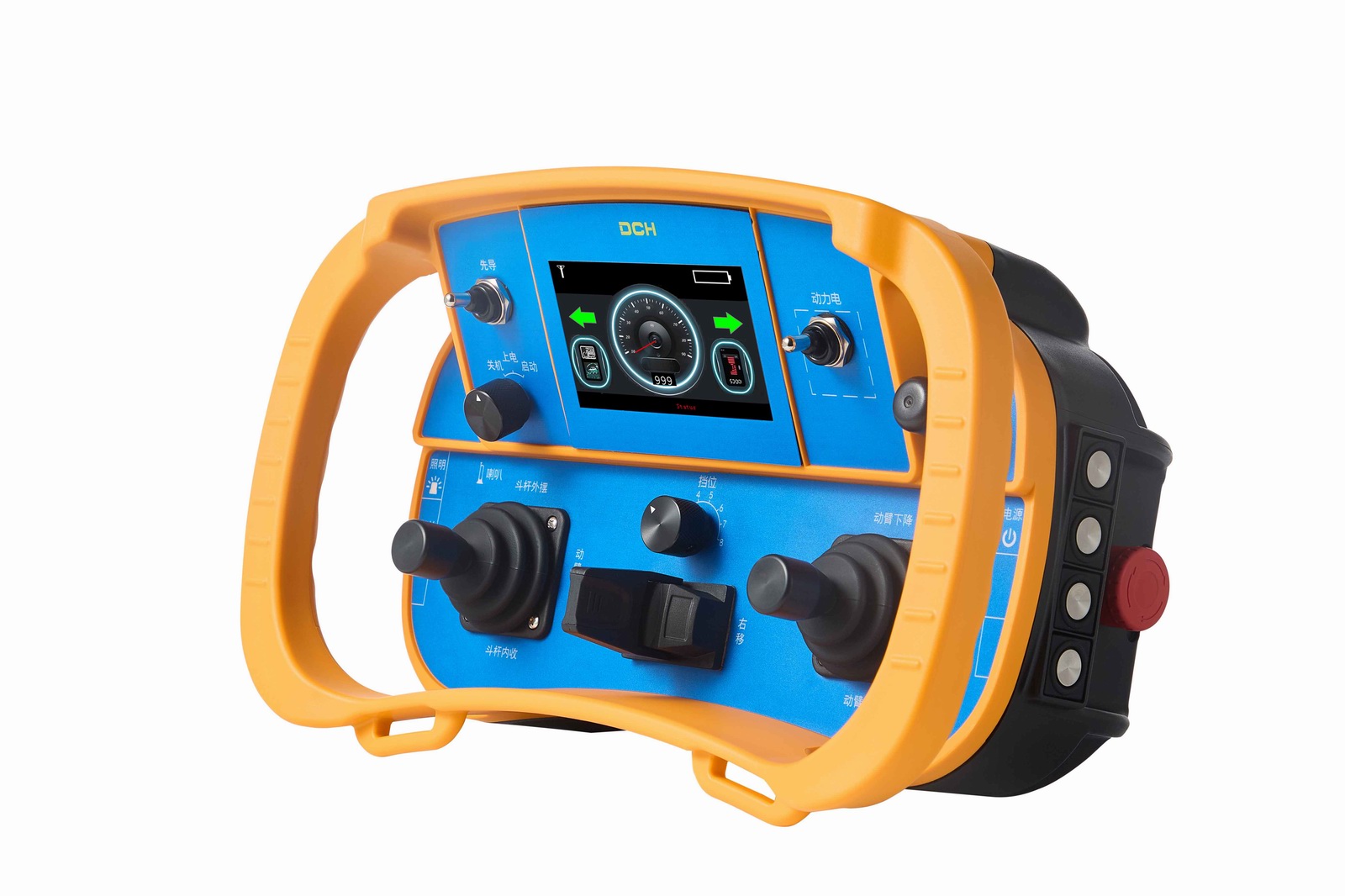

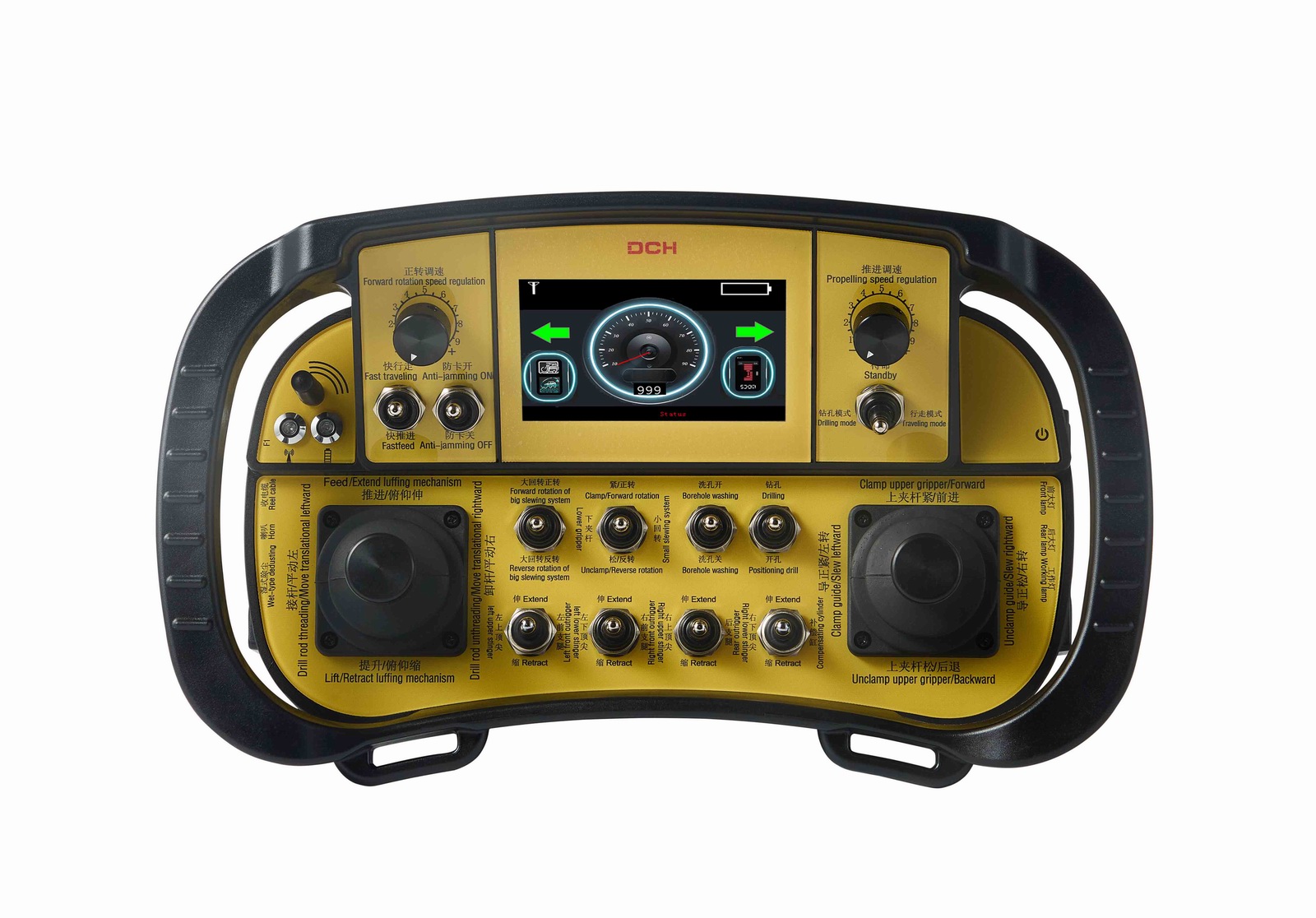

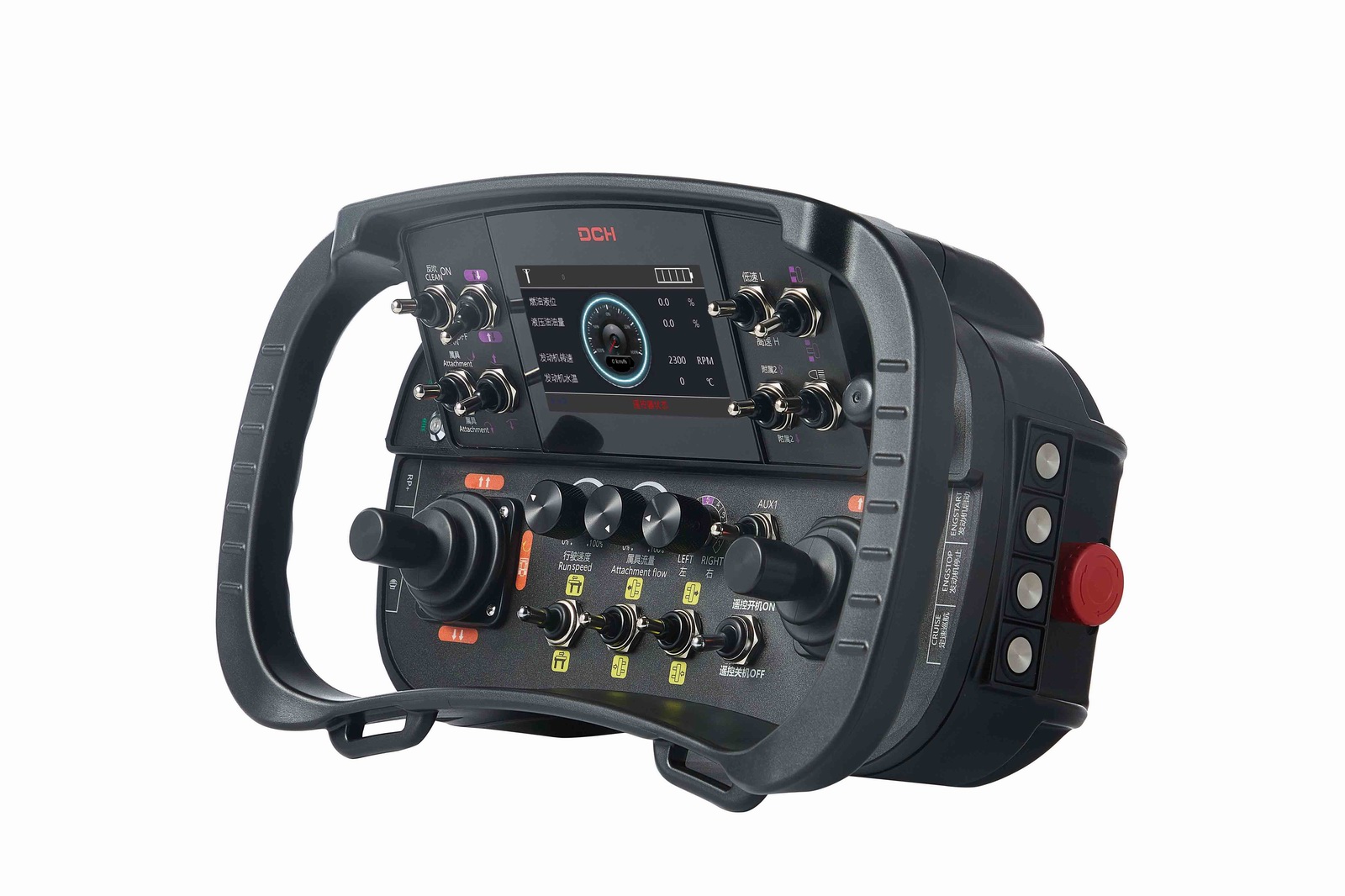

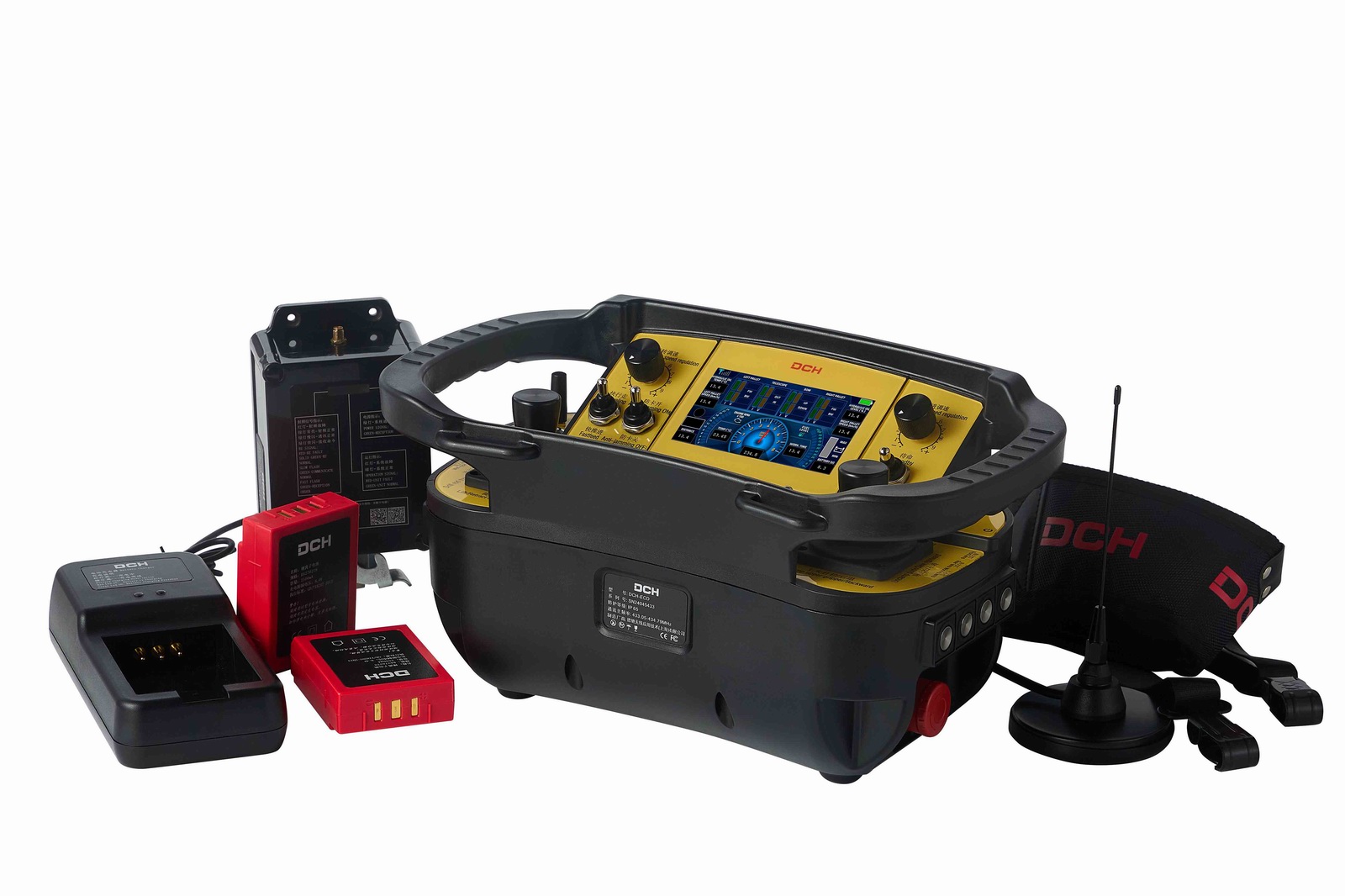

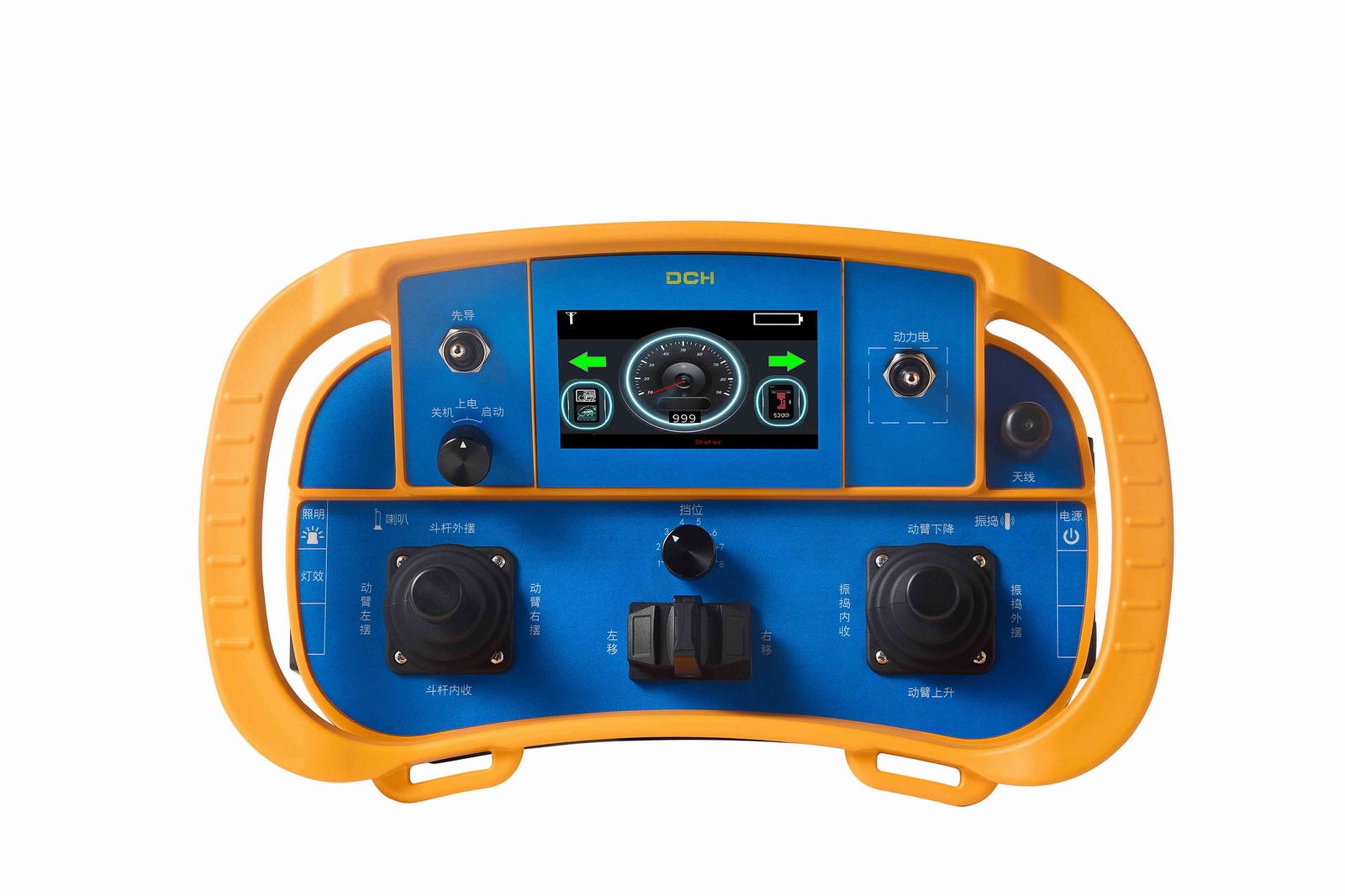

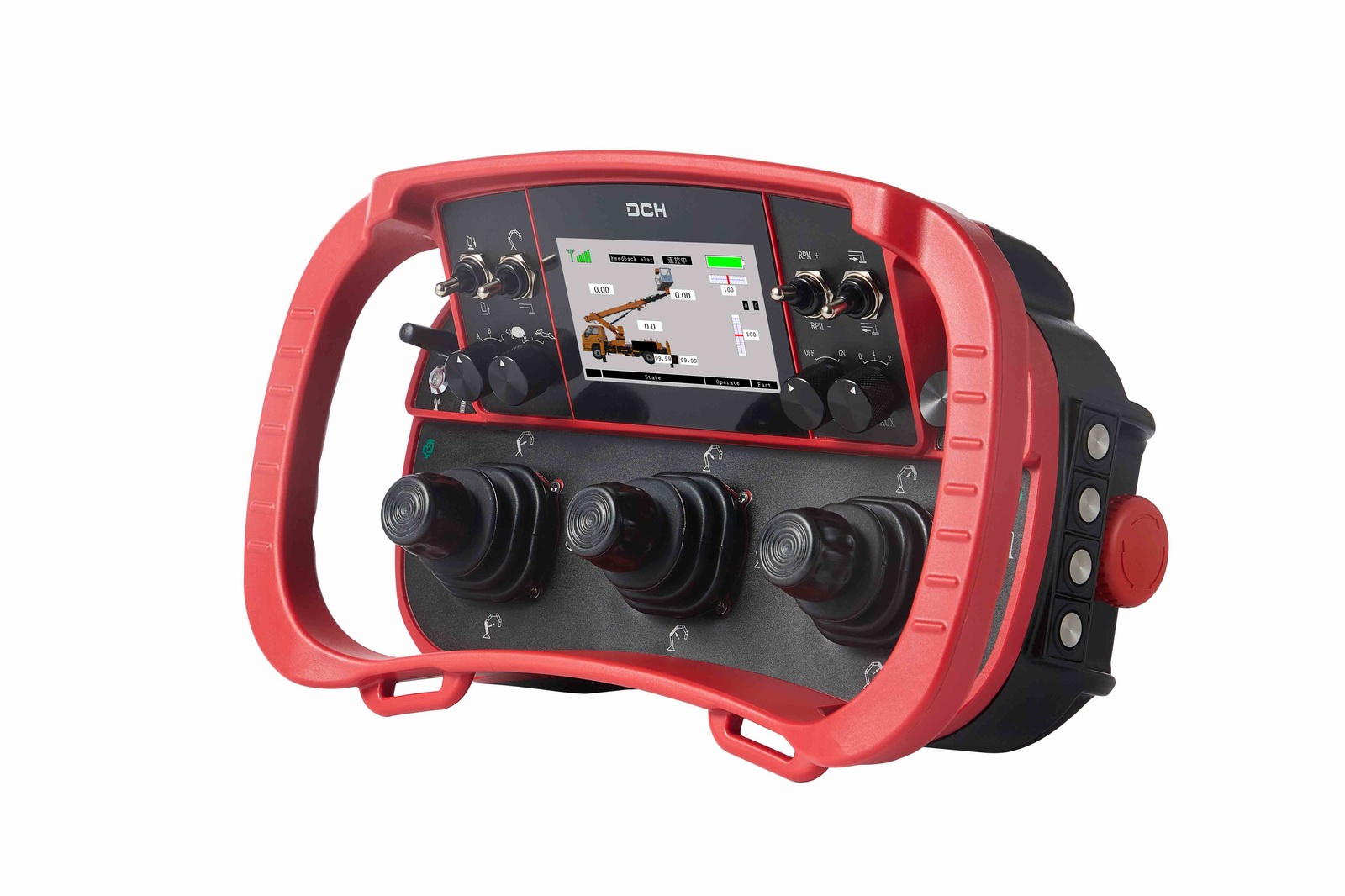

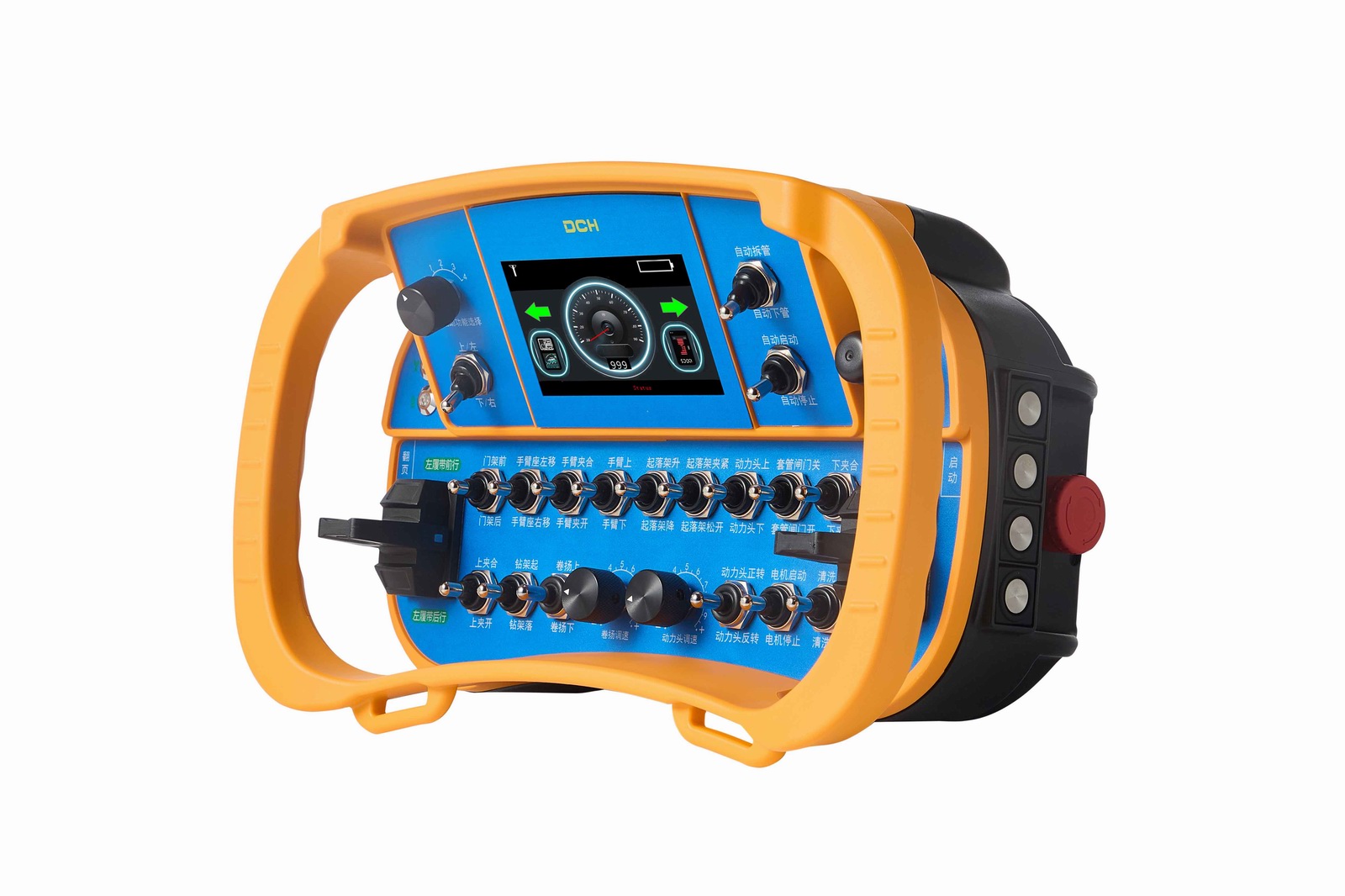

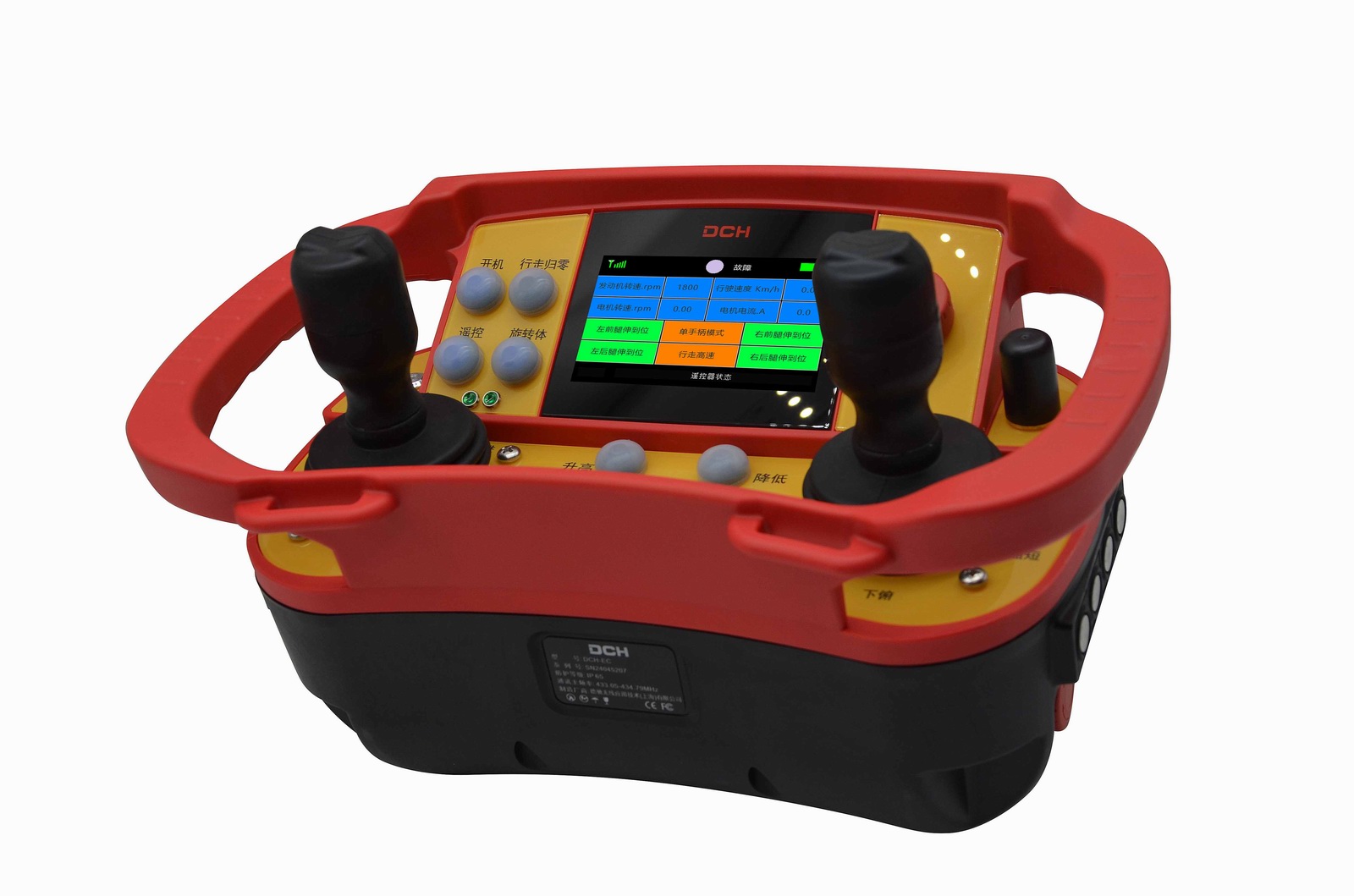

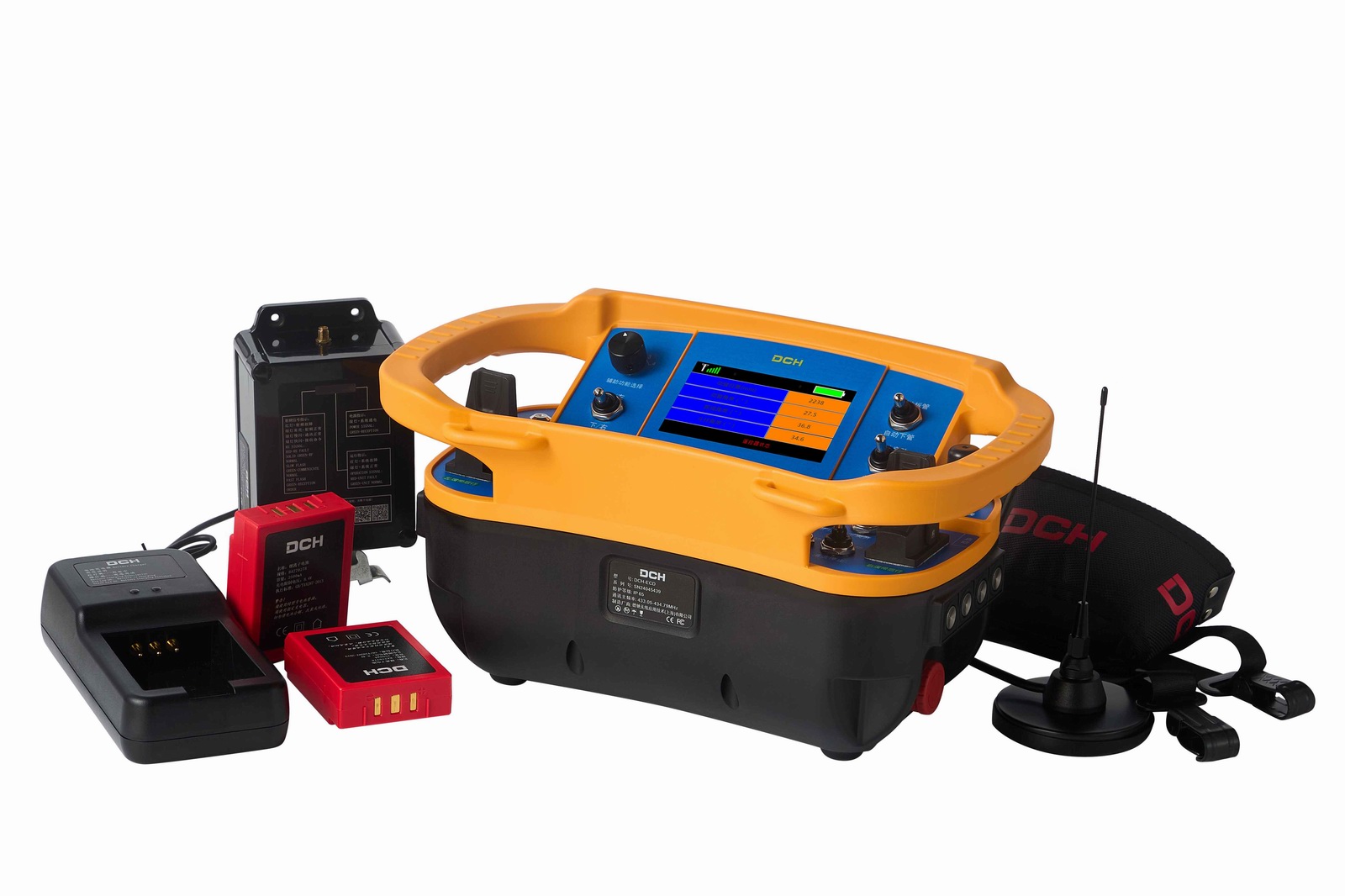

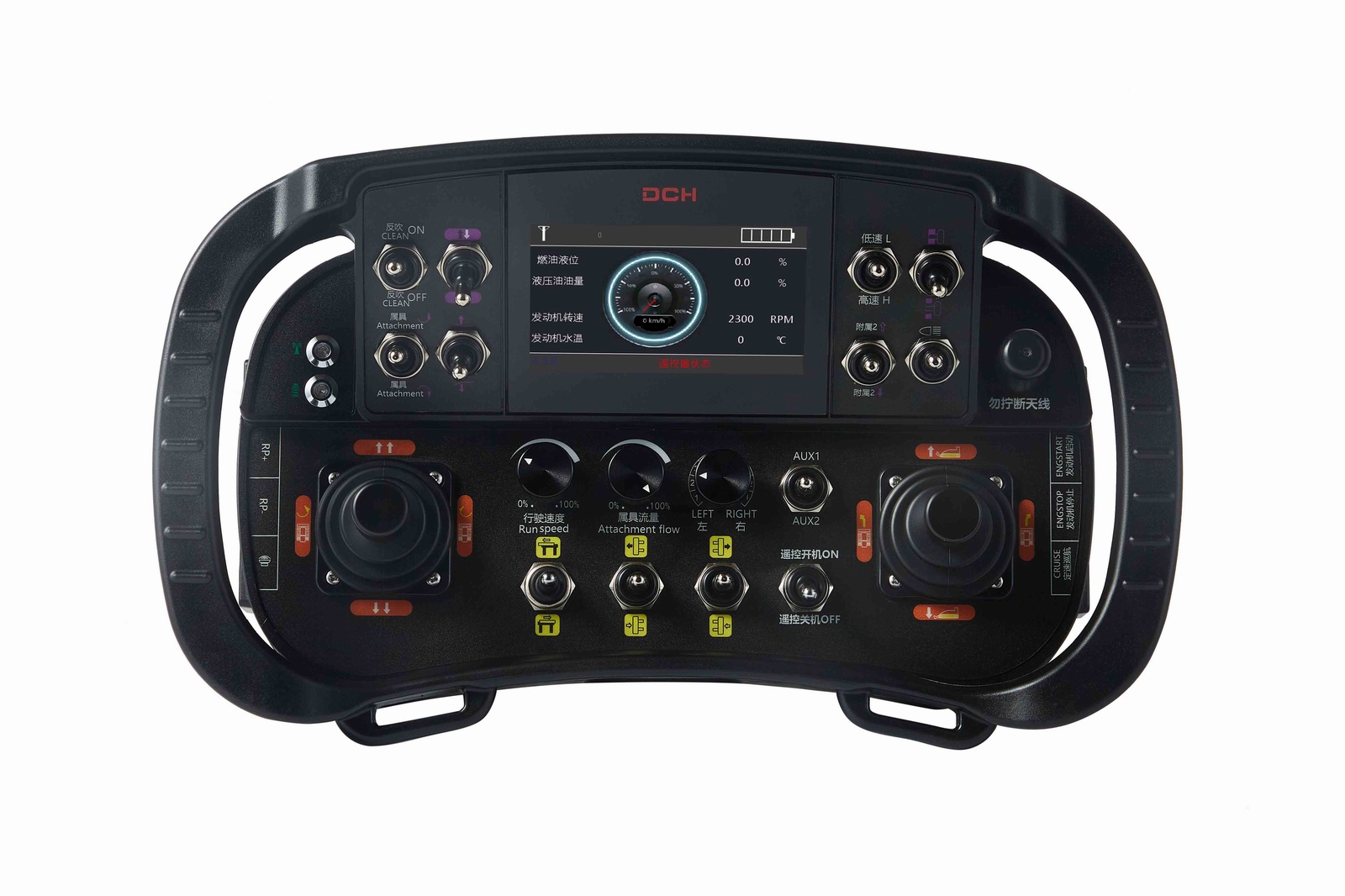

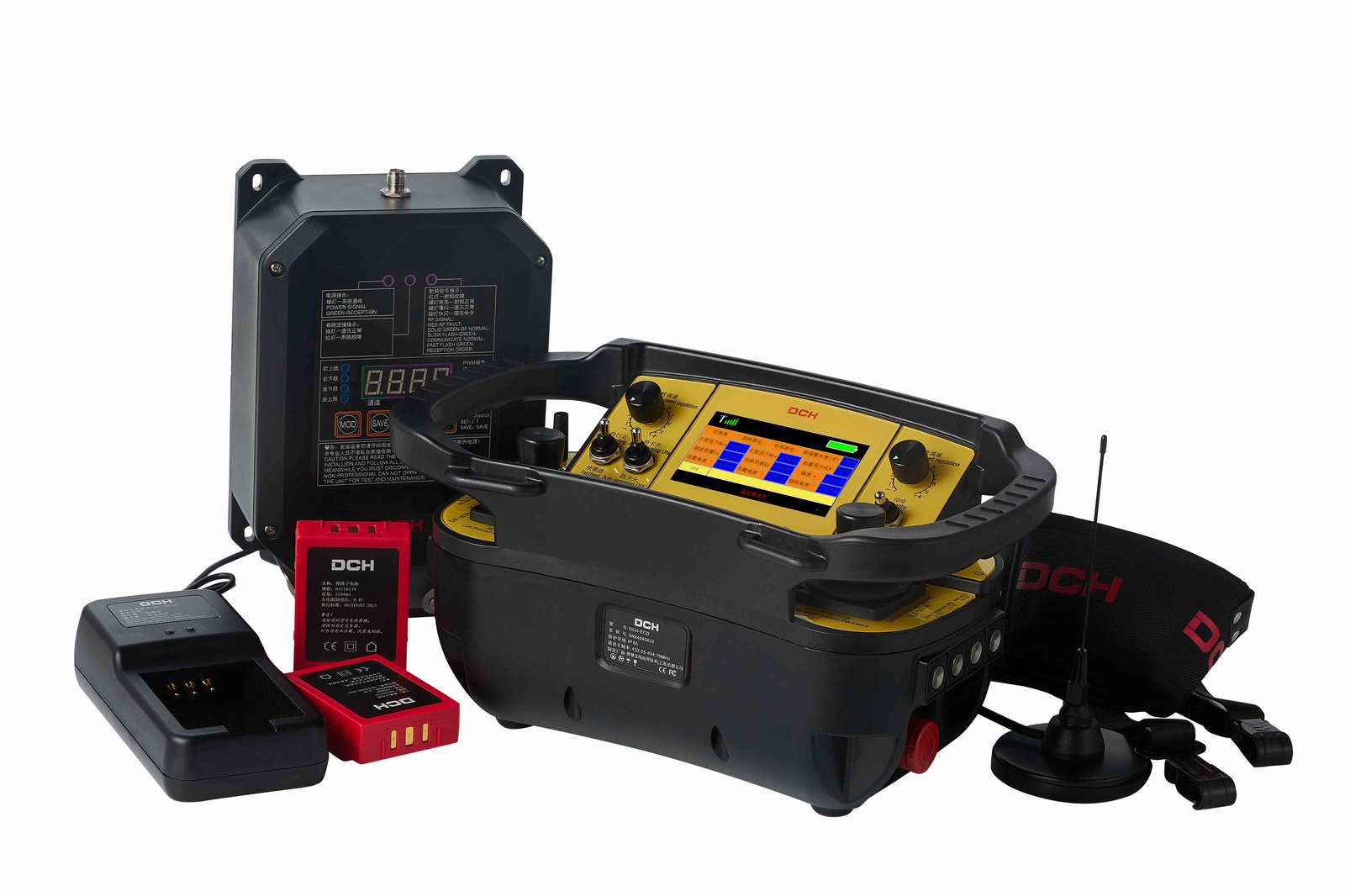

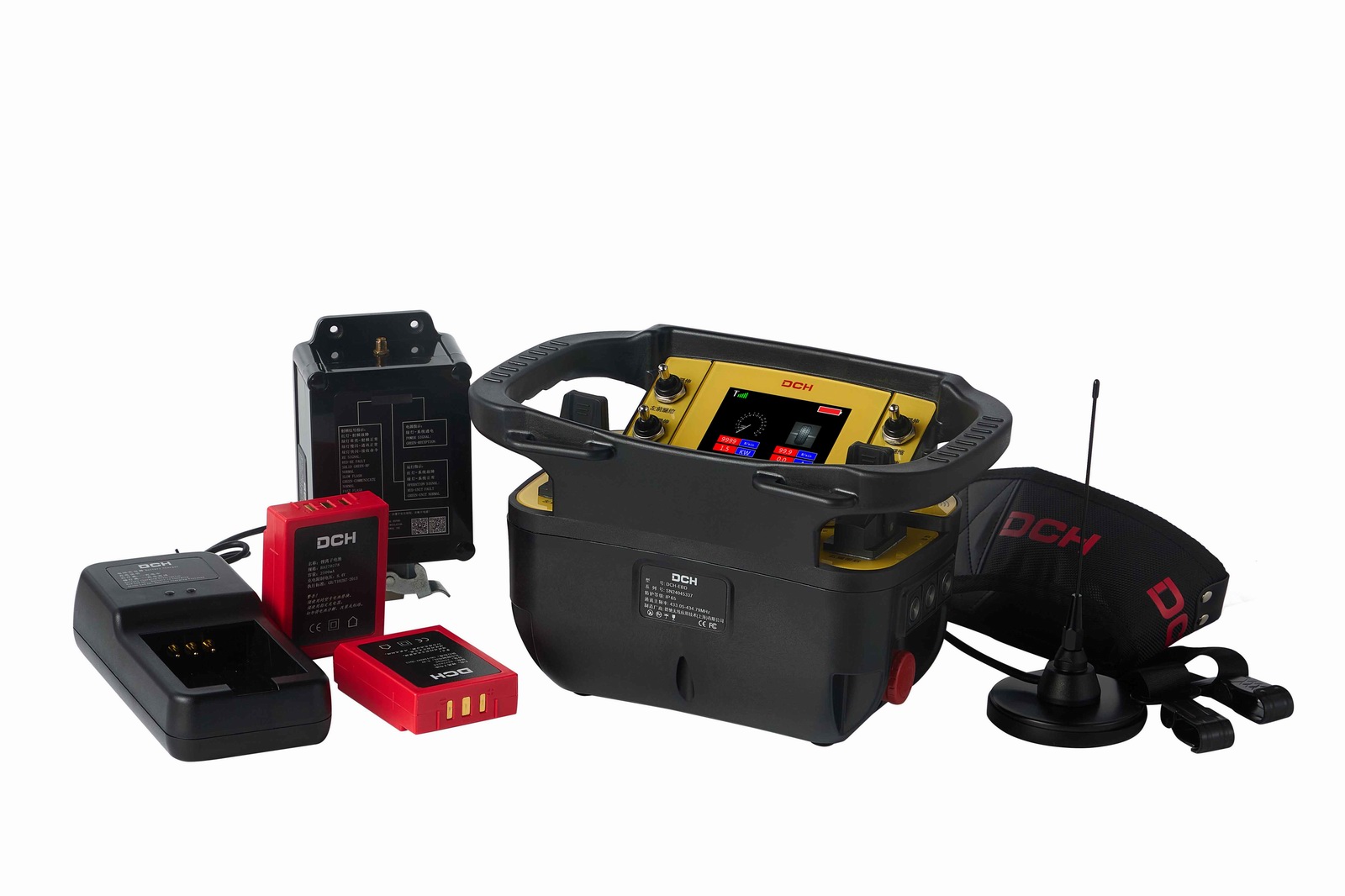

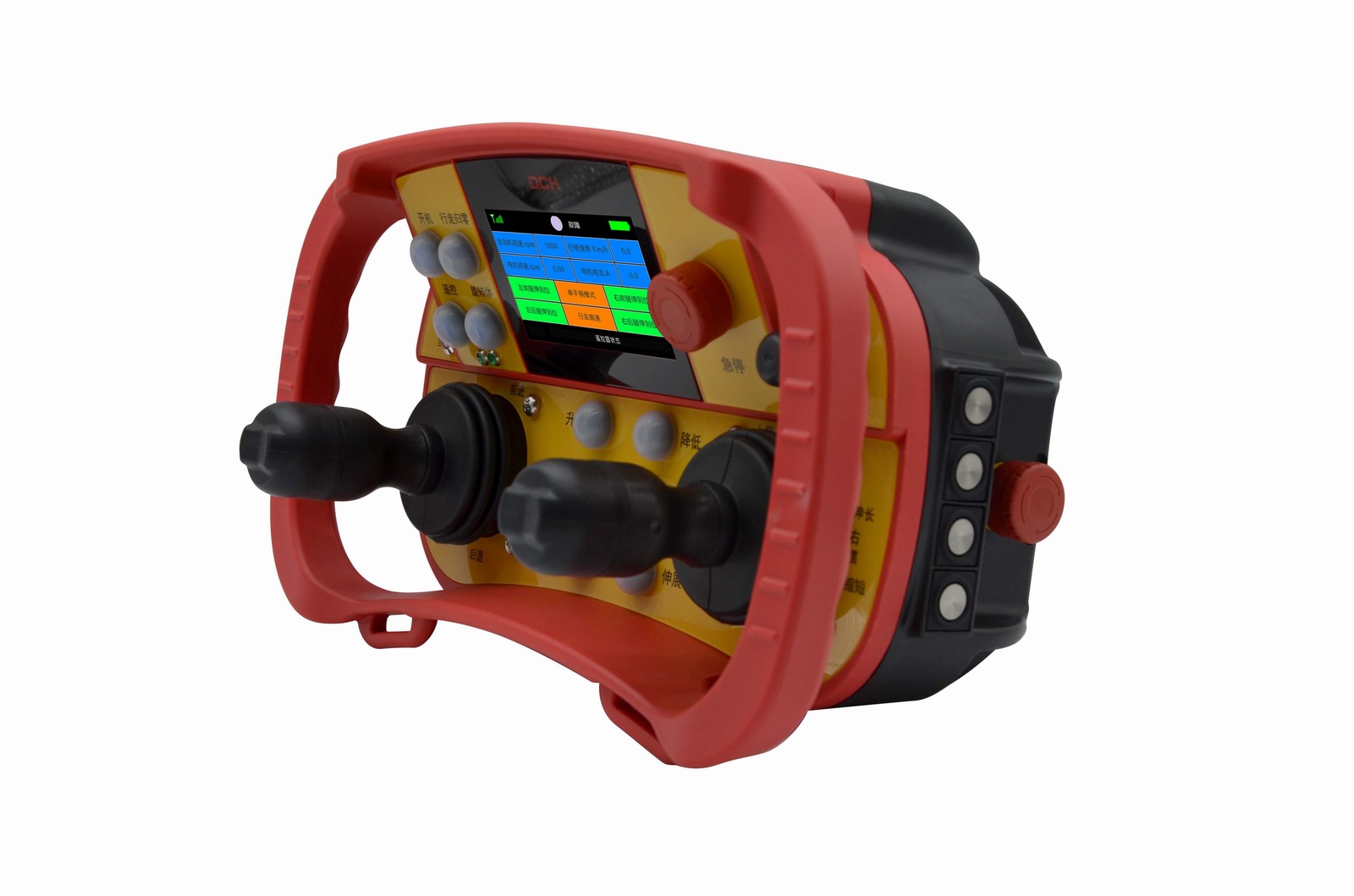

Shoulder strap display transmitter
location: Home - Products
DCH-ECD
Size: 350mm × 190mm × 160mm
Weight: 1500g-2800g (the weight varies according to the number of buttons, switches or rockers)
Antenna: internal or external
Start mode: click the start button or customize according to customer needs
Emergency stop switch: mushroom head type, complying with en13849-1 standard
Shell material: high strength engineering plastic
Protection grade: IP65

Components on both sides: start + 7 self reset  buttons

Display screen:  5-inch high-definition LED display screen, used to display battery power / signal strength and equipment operation status, such as speed, pressure, temperature, speed, oil temperature, etc

Support functions: up to 72 digital outputs (keys, toggle switches, rotary switches, etc.) + up to 12 analog outputs (straight rocker, cross rocker or potentiometer, etc.)
Panel identification: customized by customers (for detailed panel drawing library, please ask the sales staff)
Smart key: DCH IKey (keys of the same remote controller are common to each other)
Control distance: ≥ 150m (open environment, standard test with transmitter and receiver 1m above the ground)
Operating temperature range: - 25 ℃ ~ + 70 ℃
Center frequency range: 433-434mhz
LED indicator: operation indication / fault status / battery power status

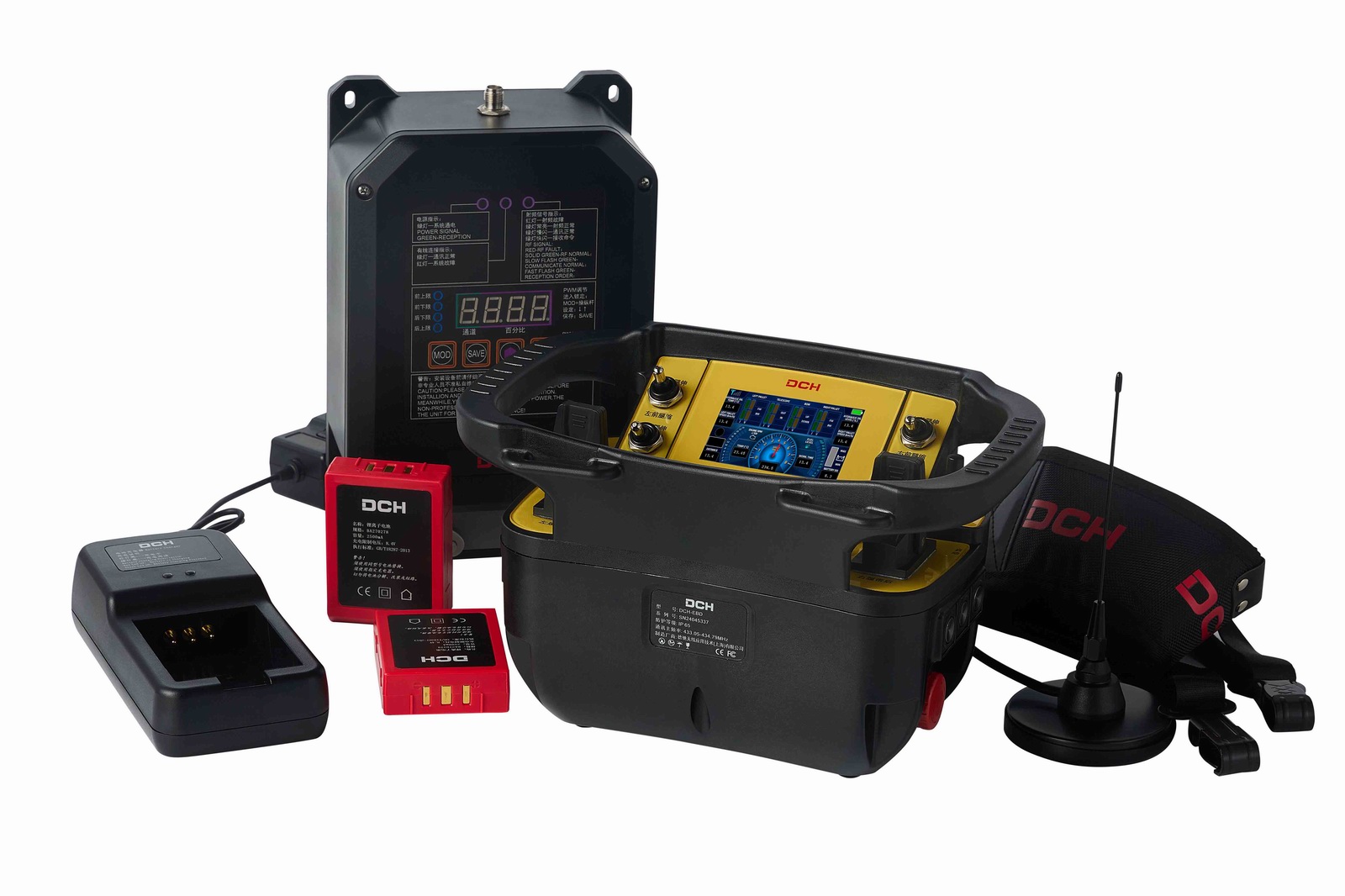

Battery: two 3500mah rechargeable lithium batteries are equipped as standard, which can be used for more than 48 hours when fully charged
Apo (automatic shutdown): standard 30 minutes (adjustable)
Additional functions: many to one function, one to many function, many to many function, tilt switch, vibration alarm, wired control
Typical applications: truck mounted crane, aerial work vehicle, crawler crane, excavator, grinder, shotcrete machine, distributor, wet jet machine, ship unloader, agricultural tractor, track laying machine, tower crane, mobile crusher, pump truck, trailer pump, drilling rig, AGV, shield tunneling machine, sanitation vehicle, fire truck, electric construction vehicle, distributor, chain arm saw, rock drill, agricultural equipment, special robot, engineering vehicle, train locomotive, special drilling equipment, Mine equipment and other equipment requiring remote control
Optional receiver: full range of receivers
